This is a dual-function (infrared sensing + mechanical pressing) with all active target area access control exit button. When the infrared sensing fails, it can be operated manually to exit.

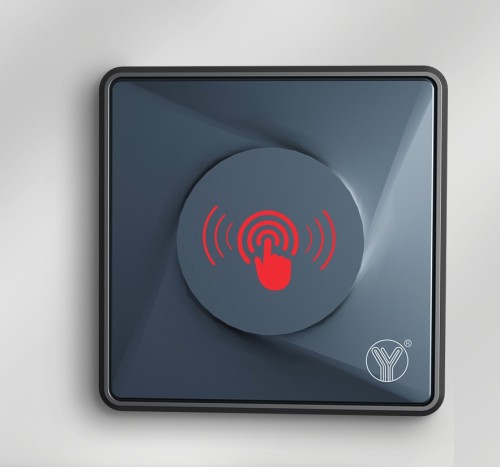

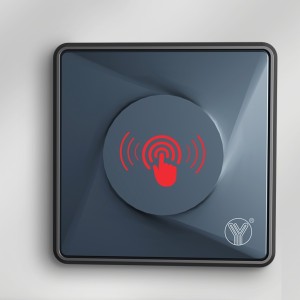

Exit button with dual function of infrared sensing and push
Product code: EL.ISK-845
62.00 €
Included 24% VAT
Technical information
- Dimension: 86Lx86Wx15,5H (mm)
- Voltage: 12~24 VDC
- Current: <60mA
- Output: Infrared Sensor: NO/NC/COM / Push to exit: NO/COM
- Contact Rating: Infrared Sensor: 1A 24VDC / Push to exit: 12VDC 50mA
- Sensor Range: 5~12 cm adjustable
- Operating Temperature: -20 °C - +50 °C
- LED Indicator: Red LED standby status, Green LED unlocking status
- Material: Faceplate . PC surface sprayed with oil and UV treatment, Backbox - ABS high gloss finish
- Weight: 0,2 kg
- Product advantages: anti-fouling, wear-resistant, impact-resistant and UV-resistant.
